AZ-ARMATUREN GMBH - Products

Plug Valves with PTFE sleeve

Two, Three, Four way and five way plug valve Design Characteristics free of cavities maintenance free – self lubricating mounting-flange for actuators acc. to DIN ISO 5211 easy accessible adjustment of the plug, even with mounted actuator vacuum tight fugitive emmission resp. clean air act certified (TA-Luft 2002 approval) Directive 2014/68/EU Firesafe design API 607 ISO 10497 FDA conformity

Explore more

Plug valve with cast heating jacket

Plug valve with cast heating jacket Design Characteristics Heating from flange to flange heating of cover area (type HM) solid casted heating jacket solid casted connections for heating medium several heating jacket connections available (e. g. female threads / flanges / weld ends) available with drain connection for condensate (optional) oversize design (optional) available for almost all valve types (e. g. plug valves with weld ends, sample valves, fully lined valves, sight glasses etc.)

Explore more

Lined Plug Valves

Plug valve with chemical-resistant, vacuum-proof lining, with ISO top flange, sealing system Design Characteristics free of cavities maintenance free – self lubricating mounting-flange for actuators acc. to DIN ISO 5211 easy accessible adjustment of the plug, even with mounted actuator with chemical resistant lining – thickness min. 3 mm vacuum tight fugitive emmission resp. clean air act certified (TA – Luft 2002 approval) Directive 2014/68/EU FDA conformity

Explore more

Lined Ball Valves

Design Characteristics full bore split body one-piece body (MONOBLOC), top entry design easy replacement of sealings integral ball and stem anti-blow-out with readjustable stuffingbox packing cavity minimized maintenance free – self lubricating mounting-flange for actuators acc. to DIN ISO 5211 with chemical resistant lining – thickness min. 3 mm fugitive emmission resp. clean air act certified (TA – Luft 2002 approval) Directive 2014/68/EU FDA conformity

Explore more

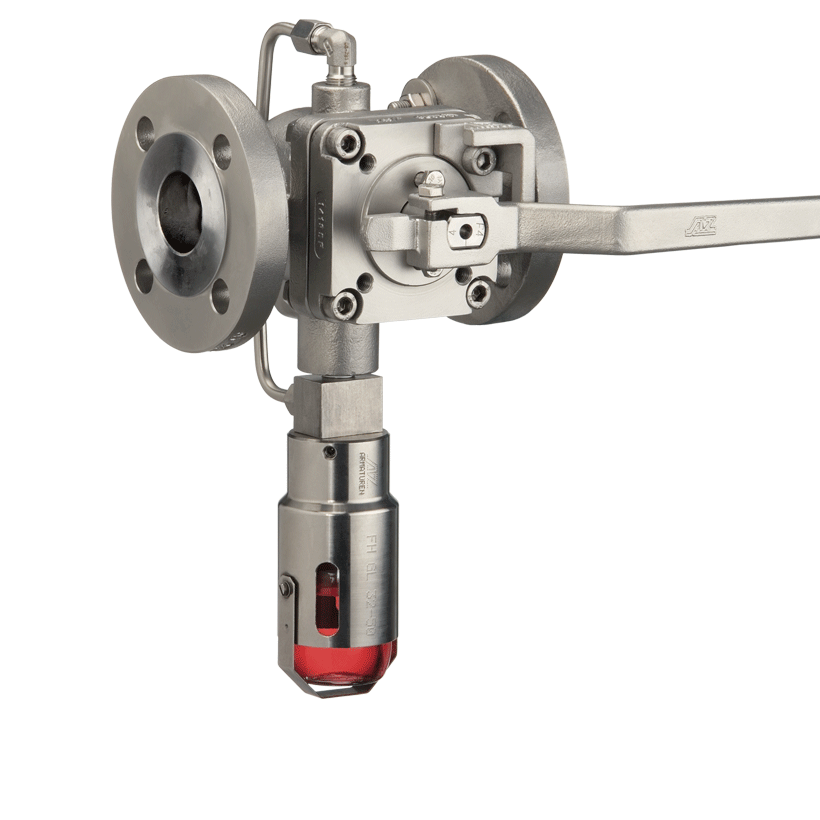

Plug Valve Sampling Systems

Sampling System for liquids or solids Reliably Working for our Customers Industries Mining • Chemical • Petrochemical • Pulp and Paper Media Sulphuric acid • Linear alkylic benzene (LAB) • Sulphonic acid • Sulphate • Urea • NH3 • CO2 • H2O solution • Resins • Hot oil • Propionic acid • Tower acid • Hydrochloric acid (HCL) • Pyrolysis Oil • Methanol • Sulphuric acid • Methyl tert-butyl ether • Caustic • Propionic acid • Tower acid Design Characteristics free of cavity closed system maintenance free – self lubricating pressureless sampling defined representative sample quantity (25ml) piggable no flow interruption simple and foolsafe handling sampling in vacuum possible fugitive emmission resp. clean air act certified (TA – Luft 2002 approval) Directive 2014/68/EU Bottle connection PTFE-Adapter: for laboratory bottle with ISO-thread GL 32/45. Application: For less toxic resp. polluted media. Clamping Retainer: For fast and easy exchange of laboratory bottle, even for heated version. Needle system: closed needle system for laboratory bottle with septum (Butyl and PTFE). Needle System NH and NH-S with diverse internal diameter(2-6 mm). Application for high toxic resp. polluted media for spillnig eliminated an contamination free sampling.

Explore more
